Micro DA

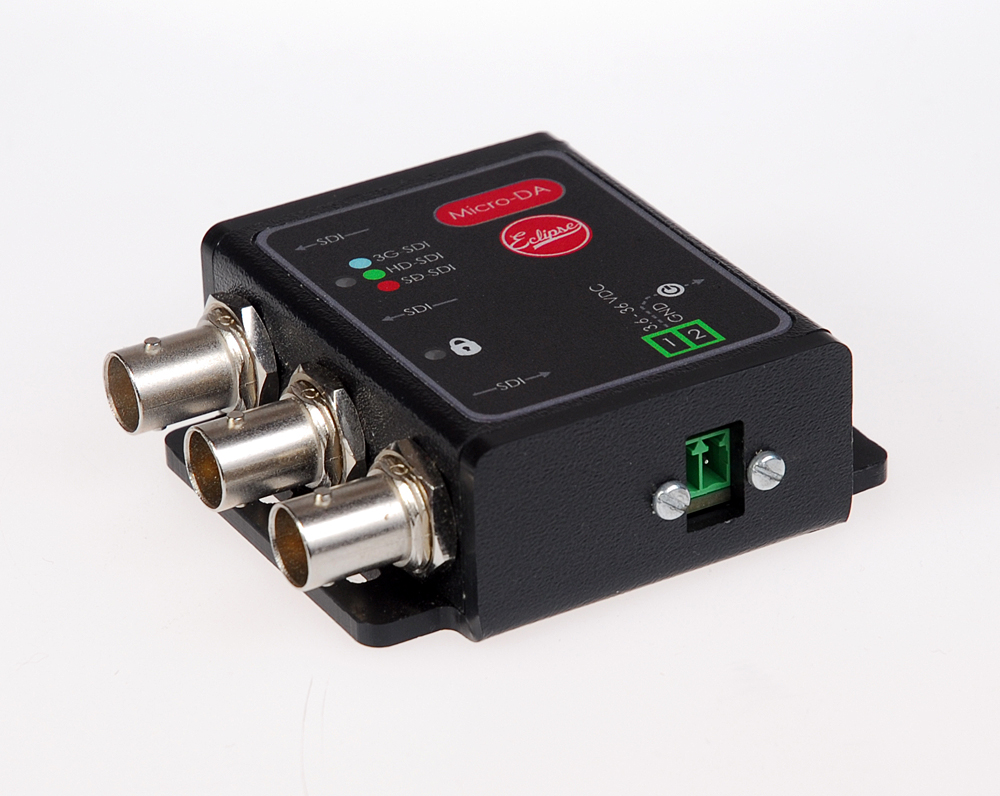

The Eclipse Micro DA is compact and lightweight (weighing an incredible 68 grammes!), ideal for applications such as splitting video feeds on weight sensitive equipment such as Steadicams and other handheld or airborne equipment.

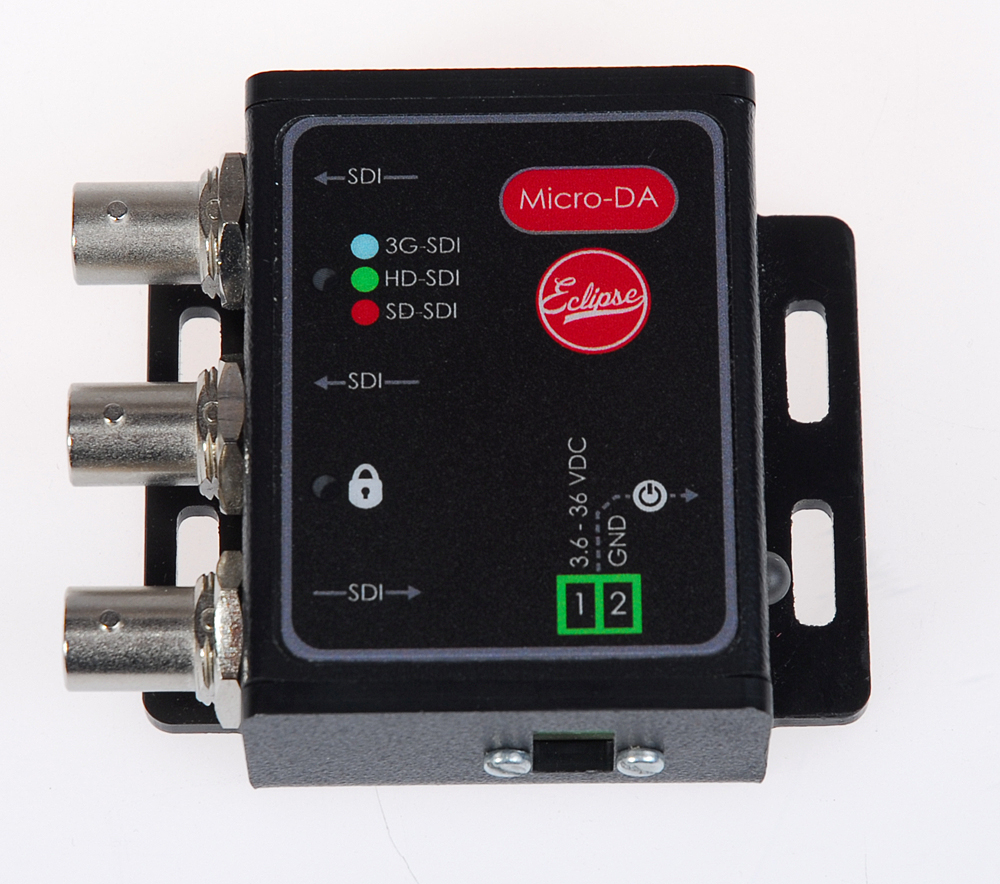

The enclosure features two flanges that include elongated cutouts to allow easy attachment with cable ties or similar devices.
TECHNICAL SPECIFICATION
• SD-SDI, HD-SDI, 3G-SDI
• Both outputs are reclocked.
• SMPTE 292M, 259M-C and 424M compliant
• Supports data rates of 270Mb/s, 1483.5Mb/s, 1485Mb/s, 2967Mb/s and 2970 Mb/s • Power On LED
• Video-Lock LED is Tri Colour to indicate Signal Type
• Removable Power Connector Block
• Enclosed within a strong snap-close enclosure, weighing a total of 65g
• Not Including Connectors (no flange), Dimensions are 63mm x 42mm x 24mm
• Including Connectors (no flange), Dimensions are 63mm x 65mm x 24mm
• Including Connectors (with flange), Dimensions are 83mm x 65mm x 24mm
Power Requirements: 3.6 - 36 VDC
This product is built to order. Please allow up to 28 days for delivery.
Our industry leading warranty applies to this product: warranty
