LED Interface - Single Channel Fibre Optic Convertor

Lyme - Single Channel
Price:
£1,063.96
inc VAT
Sales price without tax:
£886.63
Tax amount:
£177.33
Description

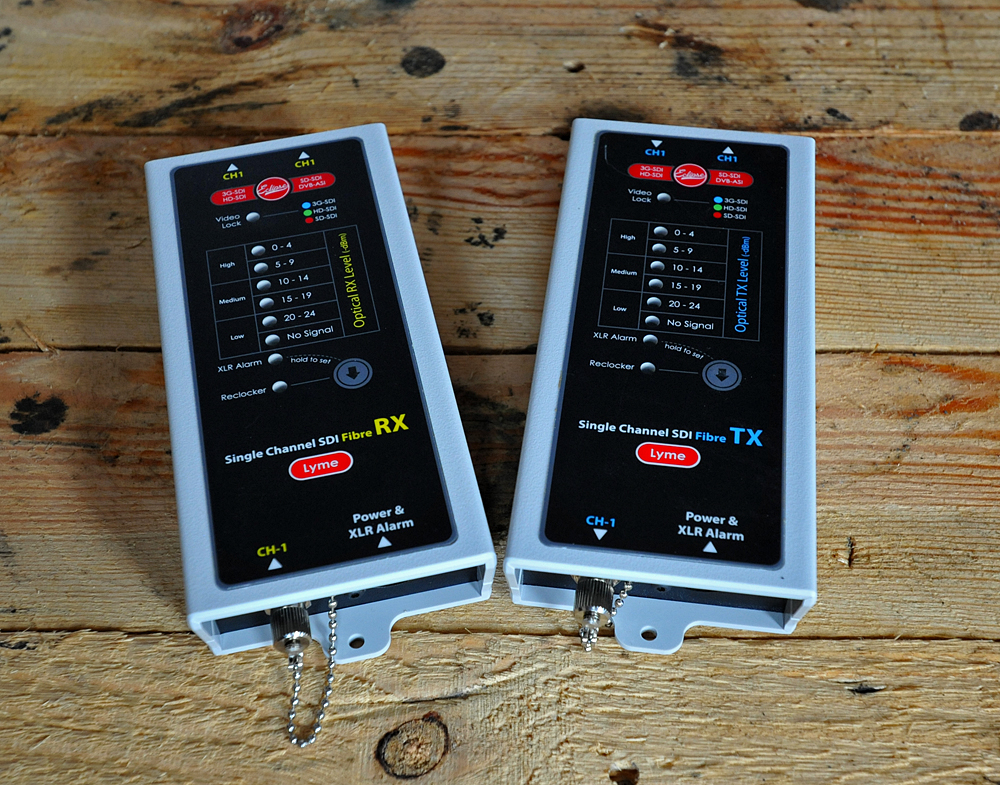

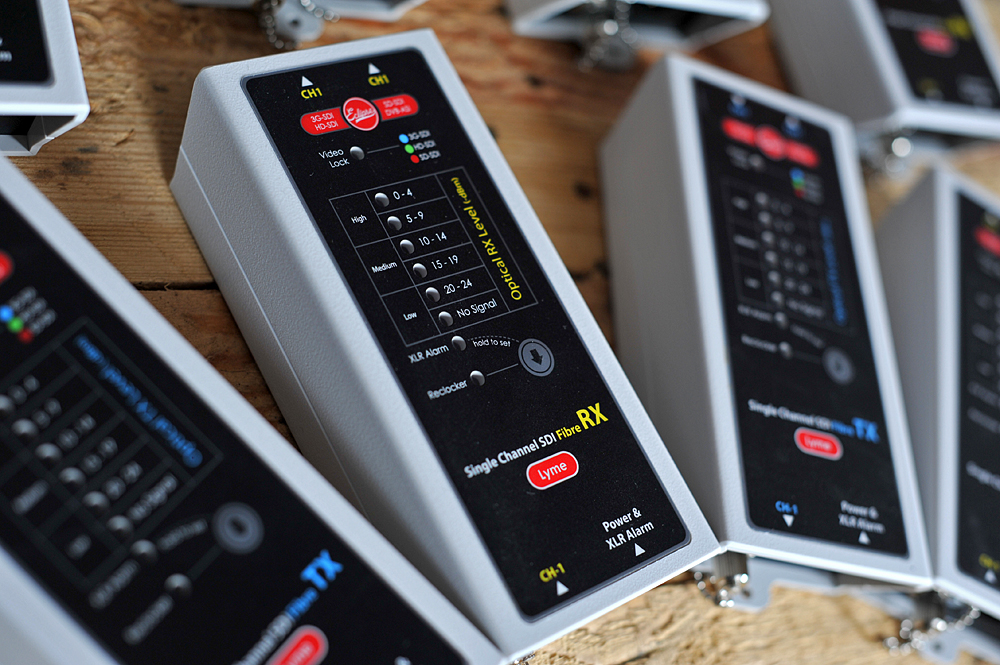

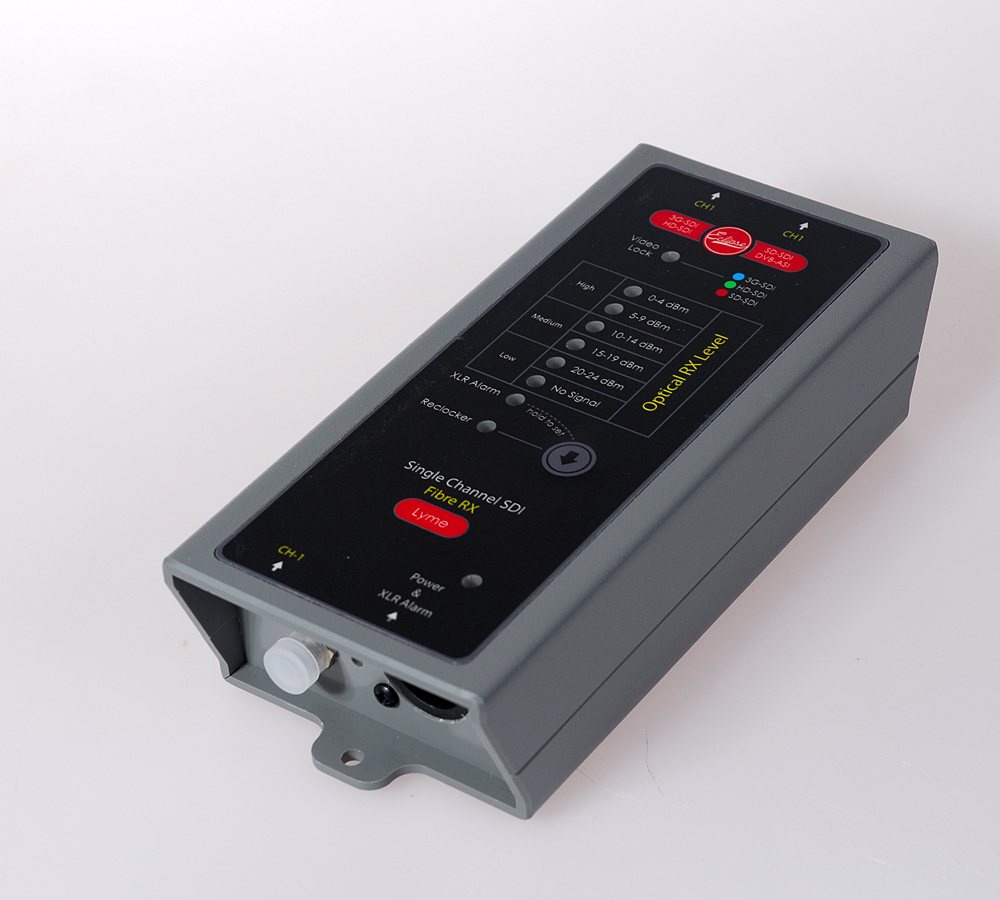

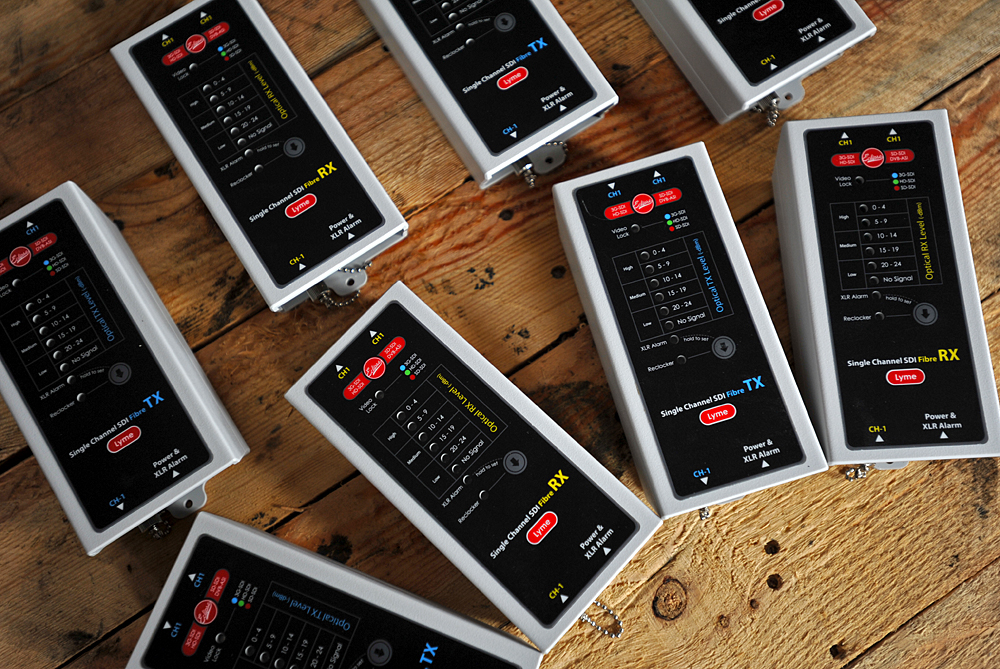

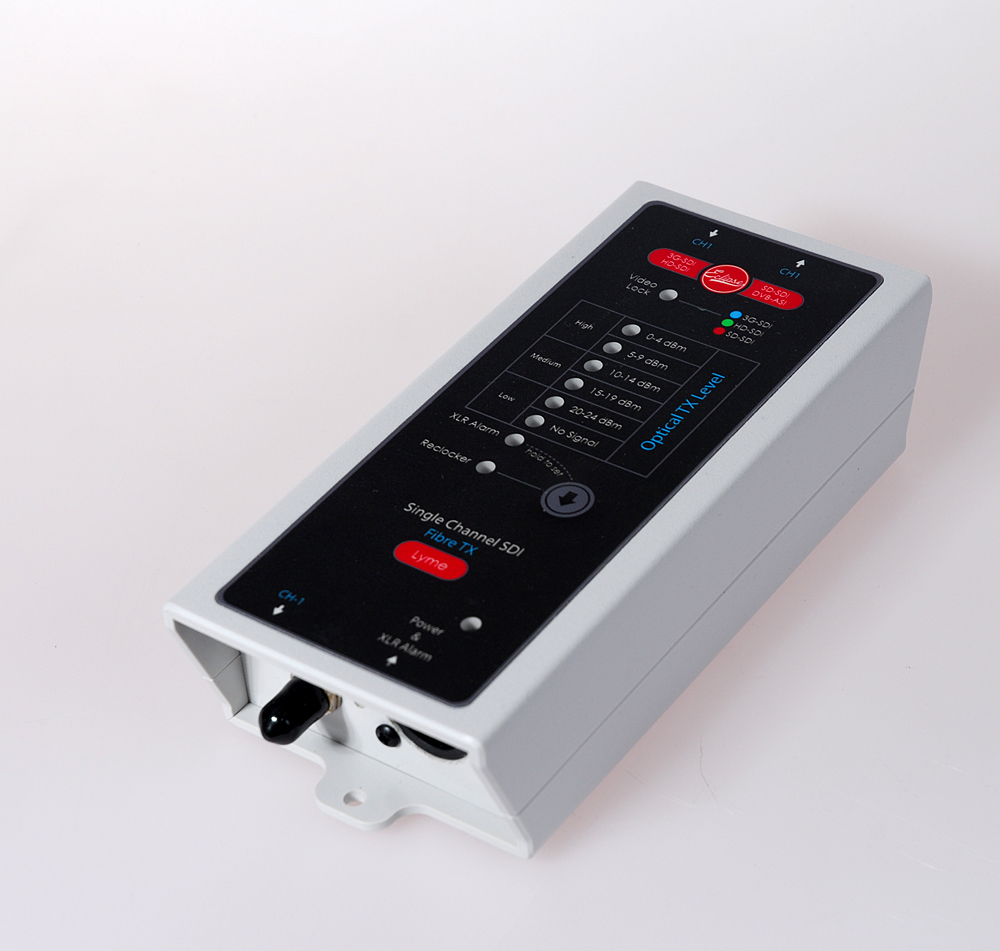

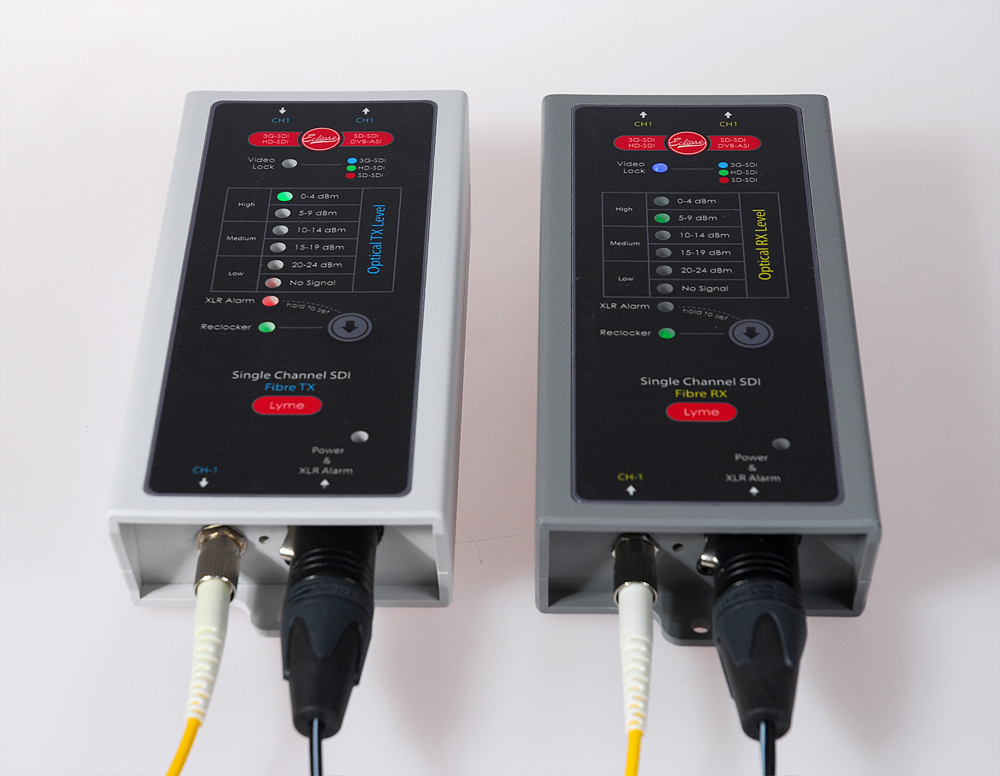

LYME SINGLE CHANNEL FIBRE OPTIC UNITS

UNITS IN STOCK NOW!

Check out our superb warranty terms on this product: warranty

 • Power On LED
• Fibre Levels are displayed via a 6 LED Level Meter.
• Video-Lock LED is Tri Colour to indicate Signal Type
• Optional reclocker bypass in both TX and RX Units
• Robust and Rugged Power Connector (4-Pin XLR) Pins 1&4 - 12 VDC IN and Pins 2&3 - Configurable relay-trigger short output for alarm/fibre level warning
• Continuous Signal Monitoring enabling Rapid Fault Diagnostics
• Supports SD-SDI, HD-SDI and 3G-SDI at data rates of 270Mb/s, 1483.5Mb/s, 1485Mb/s, 2967Mb/s and 2970 Mb/s
• Up to 30 Km range
• SMPTE, DVB and ASI Compliant
• ST or FC Fibre connectors availiable.
• Two mounting points on the base for temporary or permanant secure fixing
• Power requirements 7 to 17.5 VDC (standard 4 pin XLR) 2W at 13.8V DC
• Not including Connectors, Dimensions are 146mm x 68mm x 41mm
• Including Connectors, Dimensions are 150mm x 68mm x 41mm

Enclosures are available in a selection of colours for easy identification - more details to follow soon

We have units in stock now. Call/email if you require quantities, lead times may apply.

Prices are: £886.63 plus VAT for a TX/RX pair, and £443.32 plus VAT for an individual unit.

We sell them as a complete pair, if you want individual units, please contact us.

As with the other fibre optic units in our range, these are compatible with everything else we make, as well as many of the other alternative products on the market.

Click the link for the Tech File: LYME FIBRE TECH FILE

Our industry leading warranty applies to this product: warranty



Units in box: 2
