Tailboard Reclocker

20 Line Bi-Directional Reclocker
inc VAT
Notify Me
Description

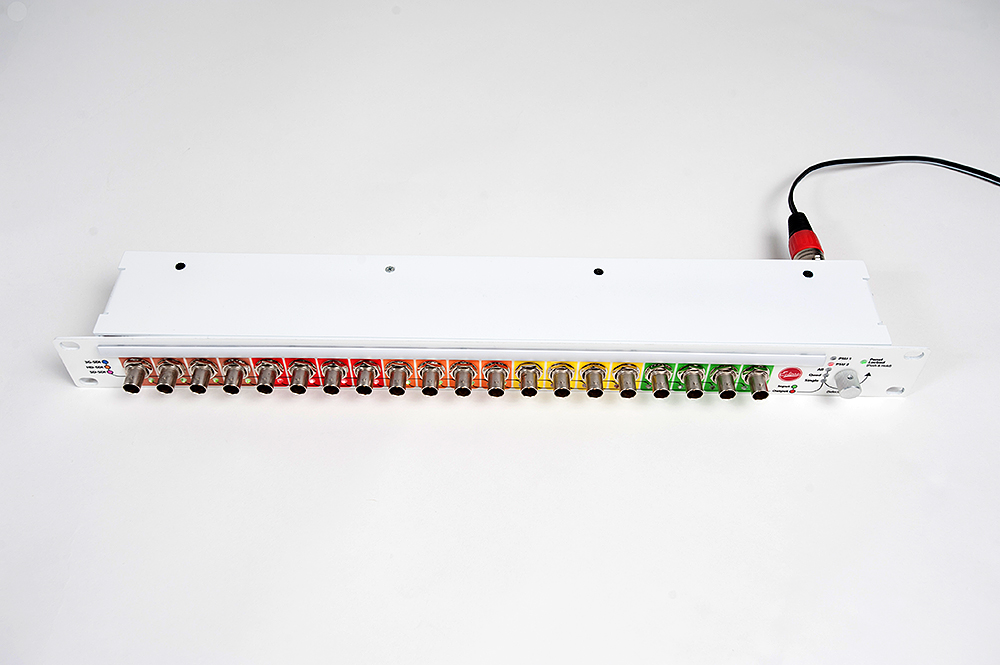

This is a 4 to 20 channel SDI re-clocker, which can be configured to be an input or output on a channel by channel basis.

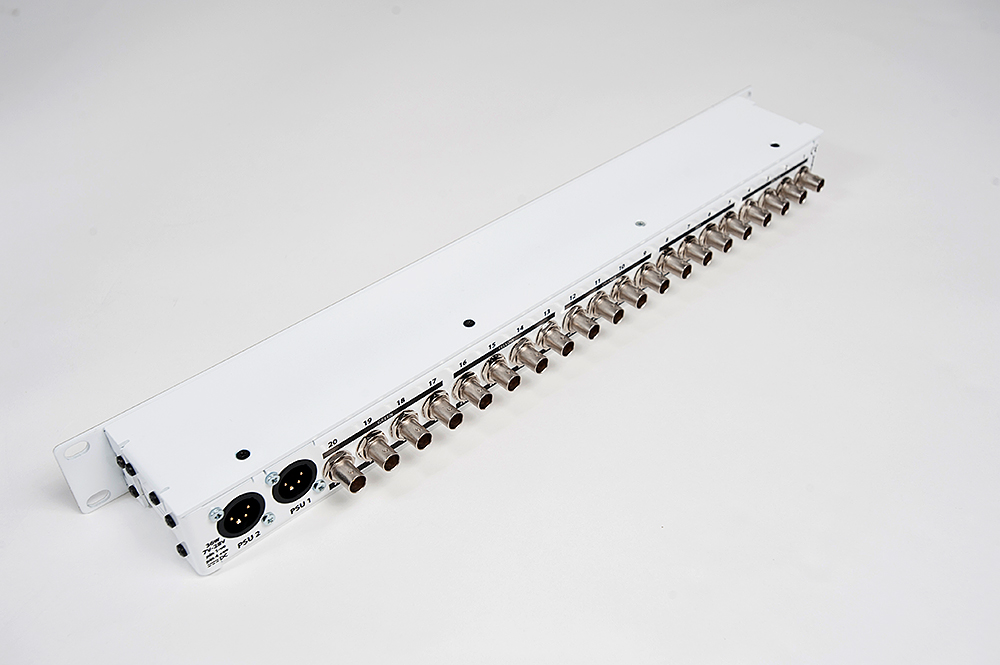

Operation is fully automatic with auto selection of any input data rate from 143Mb/s (SD-SDI) to 2.97Gb/s (3G-SDI). The unit will operate from any power input that supplies a voltage that ranges from 7 - 28 vdc. It can take 2 power inputs for redundancy purposes.

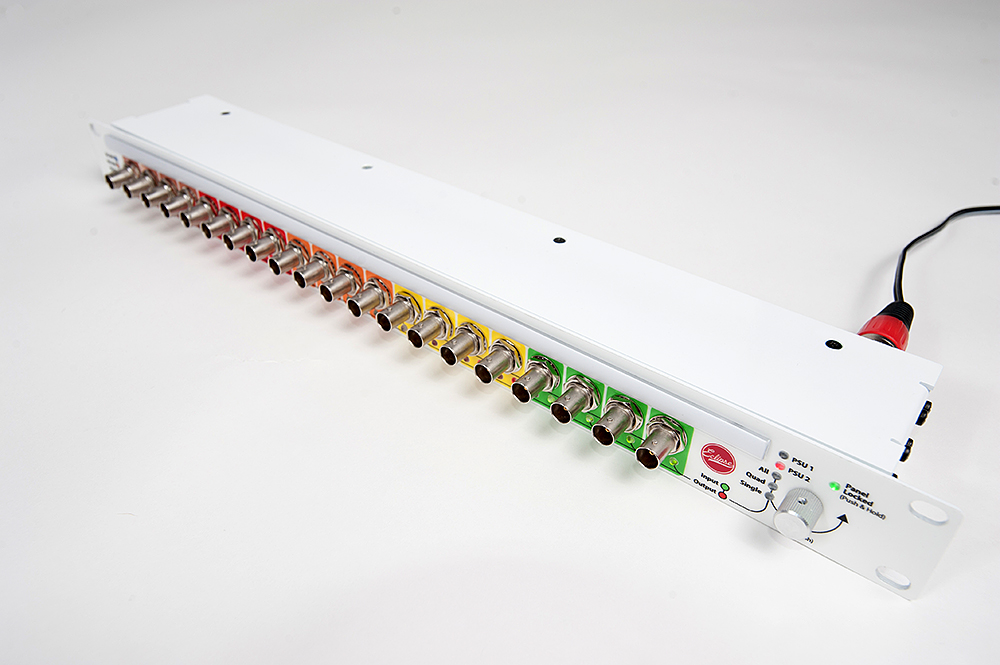

The unit comprises a tri coloured light (Yellow, Magenta, Blue) that provides a visual indication per channel as to the type of signal being received (i.e. SD, HD, 3G).

The direction also has a visual indication per channel: Red for an output and Green for an input.

The unit is configured via a rotary encoder, and function type indicators, (single, bank and all).

It's a standard 1RU case, but is a mere 69mm deep (100mm including BNC connectors on each side), so will easily fit into the tailboard of an OB truck, for example.



Please contact us for pricing.



Units are built to order, lead time is currently in the region of 8-12 weeks.









Units in box: 1
